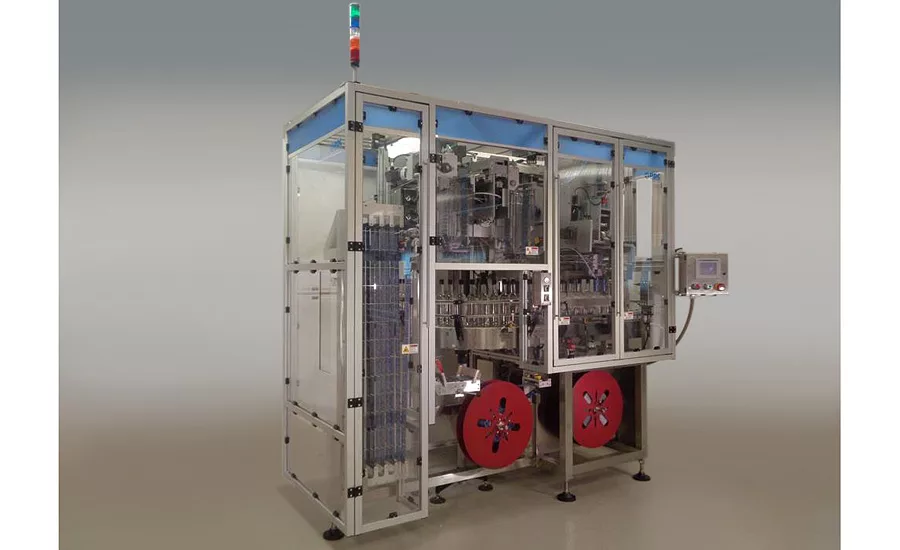

PDC International Corp., Norwalk, Conn., introduced the 90CX-ER Shrinksealer for the fast, continuous application of tamper-evident seals and shrink sleeve neck labels.
The 90CX-ER applies neck bands up to 500 containers per minute. Engineered for rugged 24/7 performance, the system features an enhanced, ultra-heavy-duty central drive system that’s vibration-free at high rpms.
90CX-ER Shrinksealers apply PVC, PETG, PLA and OPS sleeves in gauges as thin as 40 micron, with sleeve diameters ranging from .375-2 inches and sleeve heights from .625-4 inches.
PDC‘s zero-downtime “splice-on-the-fly” changeover feature allows a second film reel to be staged and spliced while operation continues at normal speed. When a reel is spent, an end-of-reel sensor automatically clamps the material end and begins consuming from the accumulation festoon. Once the splice is complete, the festoon refills by returning to its original position, awaiting the next roll change.
Standard features include stainless-steel frame, servo band feed, NEMA 4 enclosures, Allen-Bradley touch-screen and PLC and static eliminator. Sensors for low material and film feed are available for imprint and barcode verification.
PDC International Corp.
203-853-1516
www.pdc-corp.com
